CABLE Industry
ELMICATEX
Under the registered trademark ELMICATEX®, COGEBI manufactures a range of tapes based on mica paper reinforced by glass cloth. These tapes have great flexibility and high tensile strength.
ELMICATEX® tapes can be applied on conductors using all standard vertical or longitudinal taping equipment in one or more layers, usually with a 20-50% overlap.

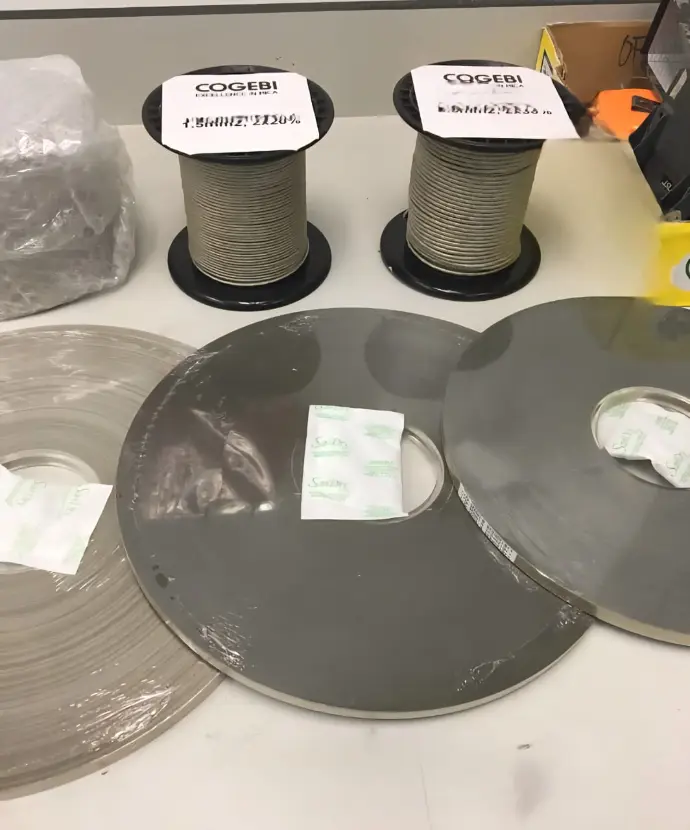

COGEBI ASIA offers a wide range of pads and traverse wound spools compatible with all commercially available taping machines.
- ELMICATEX® P - Glass backed cable tape which consists of the most heat resistant phlogopite mica paper bonded to an electrical grade glass cloth as a supporting fabric and impregnated with a high temperature resistant silicone resin.
- ELMICATEX® M - A flexible mica glass backed cable tape made of calcined muscovite mica paper bonded to an electrical grade glass cloth as a supporting fabric and impregnated with a high temperature resistant silicone resin.

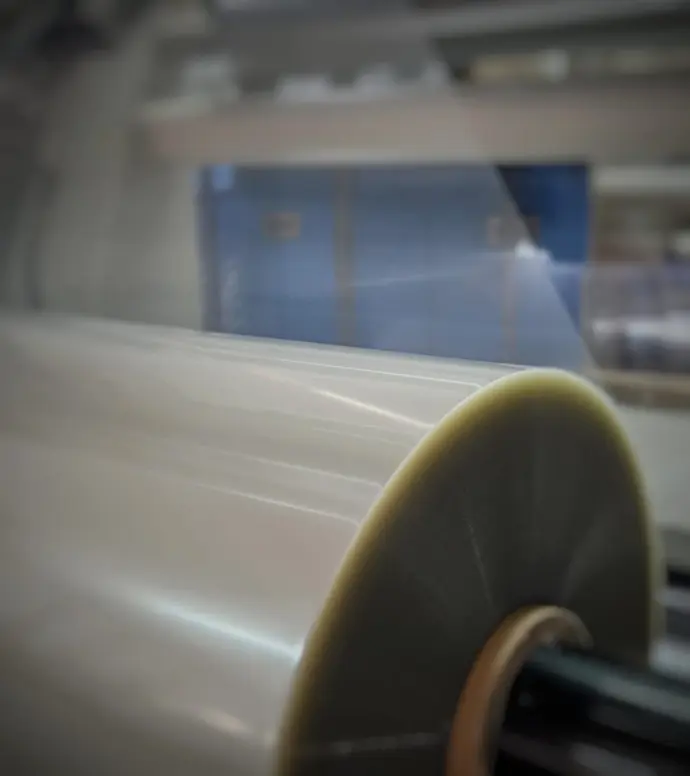

Polyester Film
With advanced expertise in insulation materials, we offer tailored solutions for cable industry. Thicknesses that we have readily available; 36µ and 50µ
Our

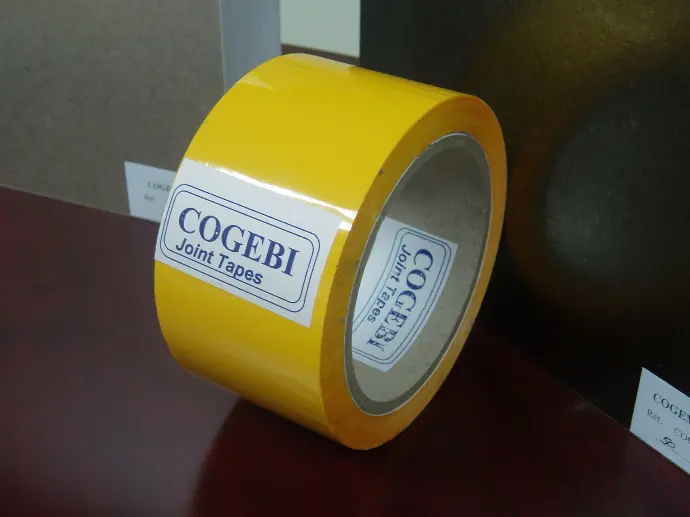

Joint Tapes
are
used best for joining mica tapes
together for the taping of conductors. The tapes offers excellent adhesion
and electrical insulation properties

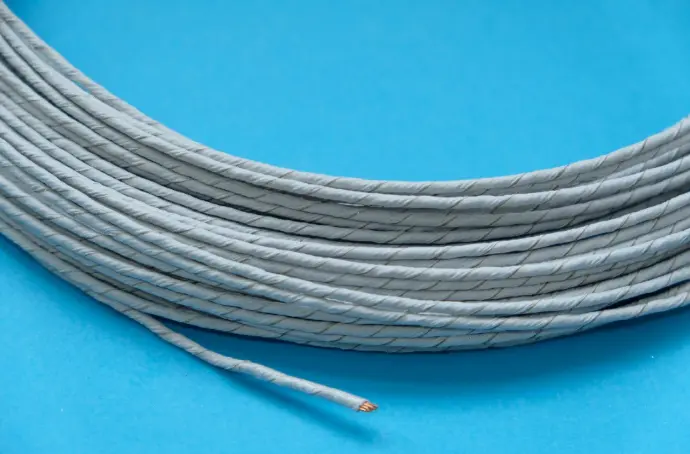

FIMIC® is a ready made conductor pre designed and wrapped with mica that is good for your immediate production use.
FIMIC® has been tested internally and also at 3rd party laboratories to be suitable for standards such as BS 6387CWZ, EN50200 and AS3013.
Our testing technical services offers specialized advise fro cable manufacturers and designers. Whether you are investigating new materials or development new or existing products, Cogebi will be able to support you throughout the process.
Our internal facilities can test BS 6387C and EN 50200
Mica Insulation taping is
the
most resource
consuming
process of fire resistant cable
manufacturing
.
Cable manufacturers are able to gain
increase
productivity
through Cogebi’s
Taping
Services
without additional investments
.
Fluctuating demands also means
more
flexibility
in engaging taping services.
With more than
;
+ half a century of know
-
how in Mica Insulation
,
and
+ a decade of experience providing Taping Services in Europe
Cogebi Asia is
capable of
providing
this
added value for your operational needs using
our own High Quality Elmicatex mica tapes.
We offer a specialized range of wooden bobbins suitable for a specific type of wires for use in the cable manufacturing industry. These bobbins are made of heavy duty Malaysian plywood and is recommended for use in Wire Drawing, Stranding, Taping etc.
